Standard Roller Chain

ANSI / DIN / ISO Certified — Simplex, Duplex & Triplex

Boyka Chain's standard roller chains are precision-engineered to ANSI B29.1, DIN 8187, and ISO 606 standards. Built from high-grade alloy steel with heat-treated components, they deliver exceptional tensile strength, wear resistance, and consistent performance across a wide range of industrial power transmission and conveying applications.

ANSI / DIN / ISO Standard Certified

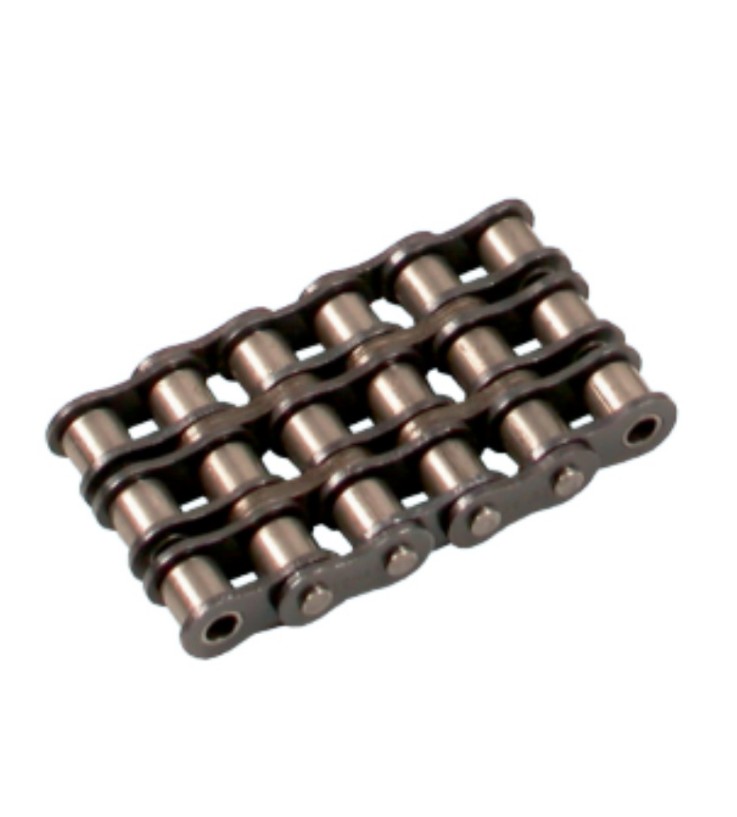

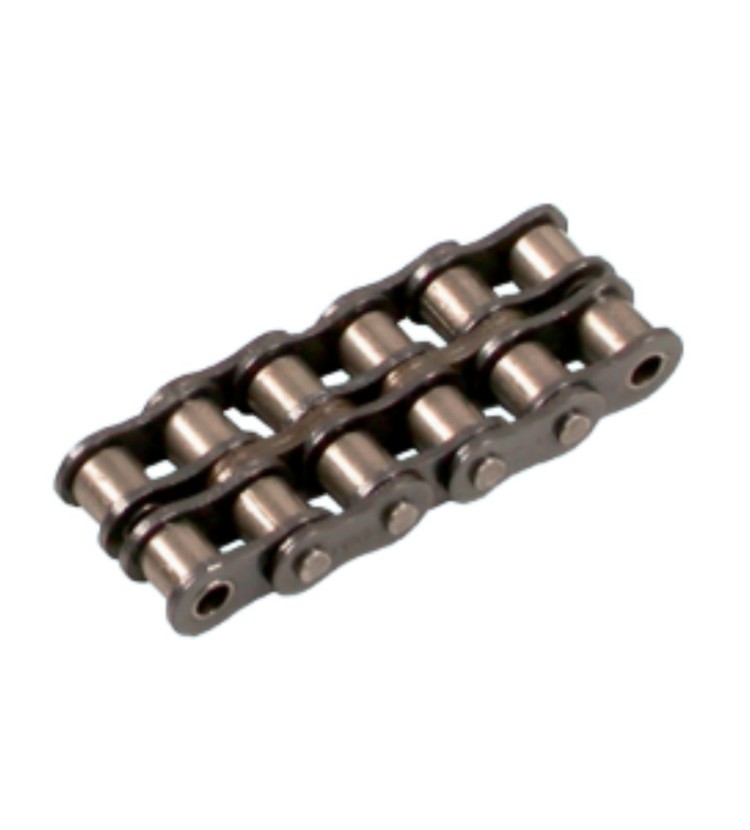

Simplex / Duplex / Triplex Strand Options
Alloy Steel Heat Treated Components
Custom Lengths Cut to Requirement
Select Type:
Common Pitch Sizes:
Call Now
Fast Dispatch Quality Guaranteed Expert Support

Product Overview

Boyka Chain's Standard Roller Chains are manufactured using high-quality alloy steel with precision-ground components. The chain assembly consists of inner link plates, outer link plates, rollers, bushings, and pins — each component individually tested to ensure dimensional accuracy and mechanical integrity.

Our roller chains are produced on modern CNC equipment with strict tolerances to ensure smooth meshing with sprockets, minimal vibration, and long service life. Every chain undergoes a 100% inspection process before dispatch — covering pitch accuracy, tensile strength, and surface finish.

Construction Details

Rollers

Precision-formed hardened steel rollers reduce friction and wear on the sprocket teeth.

Link Plates

Stamped from high-carbon steel and shot-peened for fatigue resistance and surface hardness.

Pins & Bushings

Case-hardened alloy steel pins and bushings press-fitted for interference fit and long wear life.

Lubrication

Pre-lubricated at assembly. Available as self-lube (sintered bushing) for demanding environments.

Key Features

  • High tensile strength and fatigue resistance
  • Precision pitch accuracy (±0.05mm)
  • Available in simplex, duplex, triplex strands
  • Stainless steel option available
  • Self-lubricating option available
  • Nickel-plated option for corrosion resistance
  • Standard and extended lengths available
  • Connecting links and offset links supplied

Certifications

ANSI B29.1 DIN 8187 ISO 606 BS 228 JIS B1801
Chain No. Pitch (in) Pitch (mm) Roller Dia (mm) Inner Width (mm) Pin Dia (mm) Breaking Load (kN) Weight (kg/m)
251/4"6.353.303.182.313.10.17
353/8"9.5255.084.783.598.00.33
401/2"12.707.927.853.9714.10.61
505/8"15.87510.169.405.0921.80.91
603/4"19.0511.9112.575.9631.31.54
801"25.4015.8815.757.9455.62.60
1001-1/4"31.7519.0518.909.5486.73.80
1201-1/2"38.1022.2325.2211.11125.05.40
1401-3/4"44.4525.4025.2212.71170.07.10
1602"50.8028.5831.5514.29222.09.80
1802-1/4"57.1535.7135.4817.46280.012.30
2002-1/2"63.5039.6837.8519.85347.014.60
2403"76.2047.6347.3523.81500.021.00

Duplex (2-strand) and Triplex (3-strand) versions available for all chain numbers. Breaking loads multiply by 1.75× and 2.5× respectively.

Chain No. Pitch (mm) Roller Dia (mm) Inner Width (mm) Pin Dia (mm) Plate Height (mm) Breaking Load (kN) Weight (kg/m)
04B-16.004.002.801.855.03.20.11
05B-18.005.003.002.317.15.00.20
06B-19.5256.355.723.288.29.00.38
08B-112.708.517.754.4511.818.00.65
10B-115.87510.169.655.0914.722.20.93
12B-119.0512.0711.685.7216.029.01.15
16B-125.4015.8817.028.2821.060.02.71
20B-131.7519.0519.5610.1926.495.03.70
24B-138.1025.4025.4014.6333.2160.07.10
28B-144.4527.9430.9915.9037.0200.08.50
32B-150.8029.2130.9917.8142.0250.010.20
40B-163.5039.3738.1022.8952.9355.016.35
48B-176.2048.2645.7229.2463.8560.025.00

All chains available as -1 (Simplex), -2 (Duplex), -3 (Triplex). Stainless steel (SS304 / SS316) available on request.

Automotive Industry

Engine timing drives, camshaft chains, and assembly line conveyor systems in car manufacturing plants.

Agriculture

Combine harvesters, seed drills, irrigation pumps, and general farm machinery power transmission.

General Industry

Machine tools, printing machinery, textile equipment, and general power transmission applications.

Food Processing

Stainless steel variants for food-grade conveying, washing, and processing equipment lines.

Construction

Excavators, cranes, concrete mixers and other heavy construction machinery drive systems.

Power Generation

Turbine drives, pump drives, and auxiliary power systems in power plants and utilities.

ANSI chains follow the American standard (inch-based pitch) and are common in North America. DIN/ISO chains use metric pitch and follow European standards. They are not interchangeable — sprockets must match the chain standard. Boyka Chain manufactures both series.

Yes. We supply SS304 and SS316 stainless steel roller chains for food processing, pharmaceutical, and corrosive environment applications. Please mention your requirement when enquiring.

Yes. We supply spring clip connecting links, cotter pin connecting links, and offset (half) links for all chain sizes in both ANSI and DIN series. These can be ordered together with your chain requirement.

There is no fixed minimum order quantity for standard sizes. We can supply from 1 metre to full bulk reels. For custom or non-standard sizes, minimum quantities may apply — please contact us for details.

Standard sizes are usually dispatched within 2–5 working days. Custom or large-quantity orders typically take 7–15 working days depending on the specification and quantity. We ship pan-India via courier and transport services.

Yes. Our self-lubricating roller chains use sintered bushings impregnated with oil, providing internal lubrication without the need for external oiling. Ideal for applications where regular lubrication is difficult.
